Mobile Podiatry Extraction Drill ONYX+ Brushless - Battery or Mains Powered - Bag Or Bagless

Elite Foot Health Battery-Powered Extraction Drill

A cordless, dust-free solution designed for foot care professionals. Enjoy a cleaner working environment and true mobile flexibility, no power outlet? No problem.

🔧 Key Facts, Features & Benefits

🔋 Cordless Handpiece

• Built-in rechargeable battery delivers up to 8 hours continuous use
• Includes plug-in charger for fast top-ups
• Perfect for back-to-back appointments and full-day clinics

⚡ Extraction Unit

• External 18 V, Heavy Duty 4Ah Li-ion battery pack (More can be Purchased) takes seconds to swap.
• Provides around 60 minutes of suction on medium setting
• >2 hour recharge via included charger
• Optional AC Power Supply adapter for uninterrupted mains operation (Power Supply not included and must be purchased separately)

🌀 Advanced Dust Management

• Quad-stage HEPA filter captures over 99.9% of particles ≥ 0.3 µm*
• Integrated magnetic e-file tray holds bits
• Delivers near-total dust capture for vastly improved air quality

💨 Strong Suction

• Generates >10 kPa of vacuum power
• Removes debris instantly, protecting user and patients against airborne foot dust and fungal spore particles

🧩 Bit Compatibility

• Accepts standard 3/32″ (2.35 mm) shank e-file bits and sanding bands
• Quick-change collet for seamless workflow

📦 Compact, Portable Design

• Handle-equipped housing for easy transport

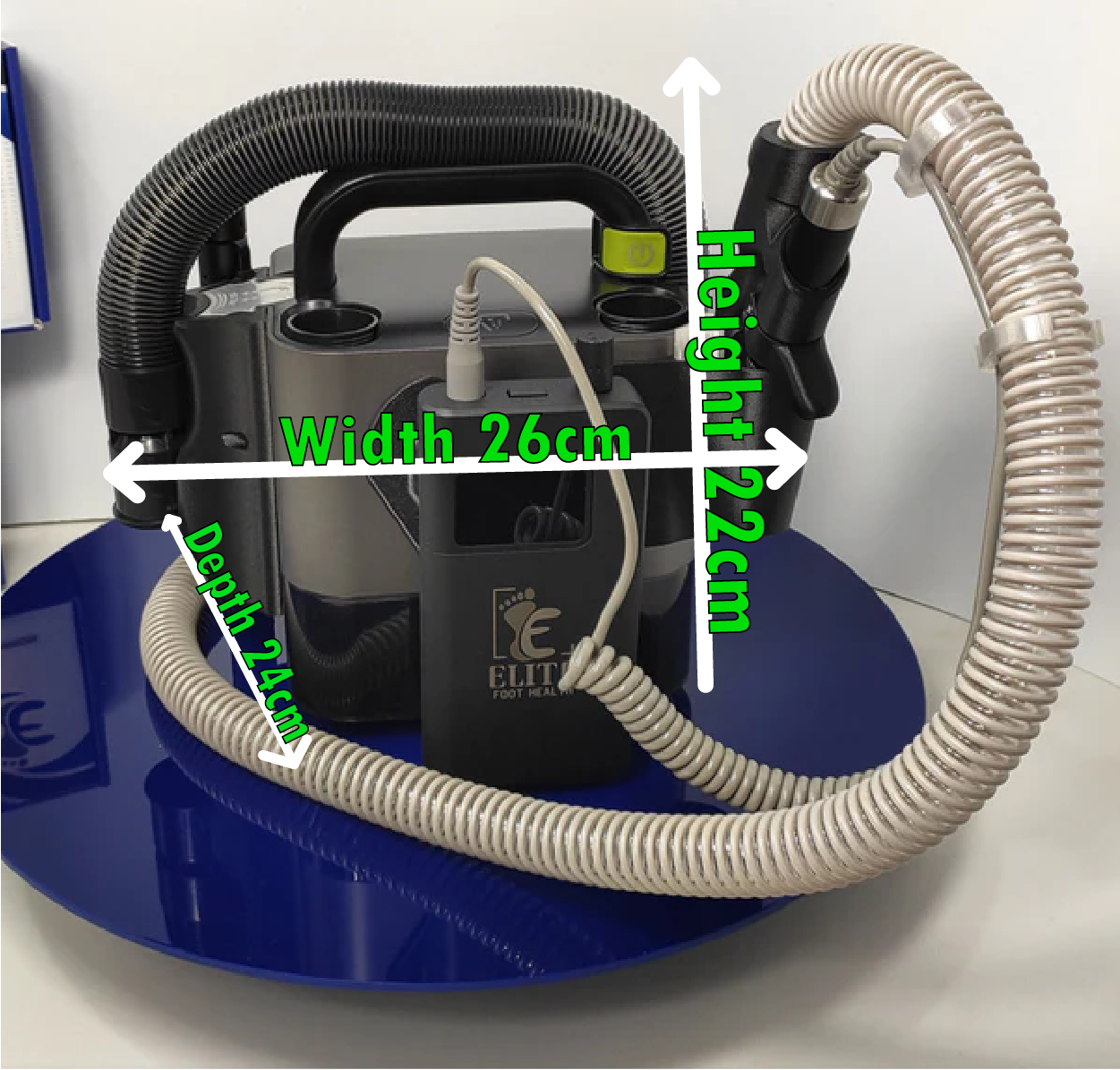

• Assembled dimensions: W 26 cm × D 24 cm × H 22 cm (without handpiece in holster)
• H 27 cm with handpiece in holster; total weight 2.65 kg (Lightest on the market)

🗂️ Versatile Dust Collection

• Use with disposable bag (lasts 100+ patients*) or bagless mode
• Bagless operation requires filter clean-out every 5–8 patients

🖐️ Ergonomics & Precision

• Lightweight 400 g handpiece with non-slip grip, palm grip also vastly improves user quality
• Stepless speed control: 0–35000 RPM
• Noise < 50 dB; vibration < 2 m/s²

✅ Safety & Compliance

• UKCA marked
• BS EN 6035-1, BS EN 61558-1, BS EN 55014-1, BS EN 55014-2-E, BS EN IEC 63000 certified

📦 What’s Included

• 1× Nail Drill handpiece
• 1× Extraction Unit
• 1× Extractor attachment
• 1× 18 V, 4 Ah battery pack
• 1× Charger for nail drill
• 1× Charger for extraction battery
• 1× Disposable dust bag

🛡️ Warranty & Support

• 12-month warranty
• Lifetime technical support and spare-parts availability

📘 Detailed Description

Elite Foot Health’s Extraction Drill System brings together unrivalled portability, powerful performance and premium hygiene. The nail drill’s built-in battery runs for up to 8 hours on a single charge, ideal for extended treatment schedules or instructional seminars, while the clip-on extractor pack delivers approximately 60 minutes of medium-setting suction. Both battery chargers are included, and an AC adapter provides endless mains-powered extraction when needed.

Dust control is engineered to a fine art. Our dual-stage HEPA filter traps over 99% of particles ≥ 0.3 µm*, funnelling debris into a clear collection bag that lasts for 100+ clients under typical use. Switch to bagless mode when you need to conserve consumables—simply empty the filter chamber every 5–8 patients for continued performance.

Strong suction (>10 kPa) pulls debris away from the treatment zone as you work, cutting downtime and boosting clinic hygiene. E-file compatibility with 3/32″ (2.35 mm) shank bits and sanding bands ensures broad tool selection, and the integrated magnetic tray keeps your most-used burs close at hand.

Ergonomically shaped, with removable palm grip and just 400 g, the handpiece feels like an extension of your hand. Stepless speed control (0–35000 RPM), low noise (< 50 dB) and minimal vibration (< 2 m/s²) combine for patient comfort and operator ease.

Legal & Warranty Information

Manufacturer: Elite Foot Health Ltd, UK.
Standards: BS EN 6035-1, BS EN 61558-1, BS EN 55014-1, BS EN 55014-2-E, BS EN IEC 63000 certified. UKCA approved.

Warranty:
- 12-month limited warranty on defects in materials and workmanship
- Excludes normal wear, misuse, improper maintenance, third-party modifications

*HEPA filter efficiency based on testing protocols and UKCA government guidelines.

Support:
• https://www.elitefoothealth.com
• contact@elitefoothealth.com


Elite Foot Health® are trademarks of Elite Foot Health Ltd. ©️ 2021, All rights reserved.

Frequently Asked Questions:

- Is it durable? Yes! It is made out of Acrylonitrile Butadiene Styrene and Carbon Fiber PetG which are all extremely durable. However, if a picture says a 1000 words, a video says tenfold: the best way to fully answer this question is by heading to our YouTube video: https://youtube.com/shorts/x-tax2Bff-Y

- Will my e-files fit? The shank size is 2.35mm. Simply put: we have never had a complaint from Foot Care professionals regarding existing e-files fitting in Elite Foot Health drills, as we use the most common size.

- Can the drill on this be changed? Short answer: no. To answer fully: This is an Elite Foot Health® exclusive design and the drill unit has been created with enhanced tolerances; to cope with fine dust particulates, this was accomplished through increased shaft precision and tighter seals on the internal bearings. Using a third-party drill will lead to damage to your drill unit. Our Extraction Unit will only fit our drill, it's literally designed to fit it perfectly. by using another drills with it you risk breaking your drill and potential damage to the extraction unit.

- Are there bags inside the Extraction Unit? Yes! Can be used bagged or bagless: the choice is yours!

- Can the filter be changed? Yes, replacement filters are advised every 6 months to a year, or whenever you feel a reduction in extraction which can vary from usage. These can be purchased from our website. We also have a Home Service Plan available, ensuring your Extraction Drill is always in tip top condition.

- Can the filter be cleaned? Yes, either rinse out and allow to fully dry or use compressed air if available.

- Can the pipe be cleaned? Yes, pipe cleaners can be purchased from our website.

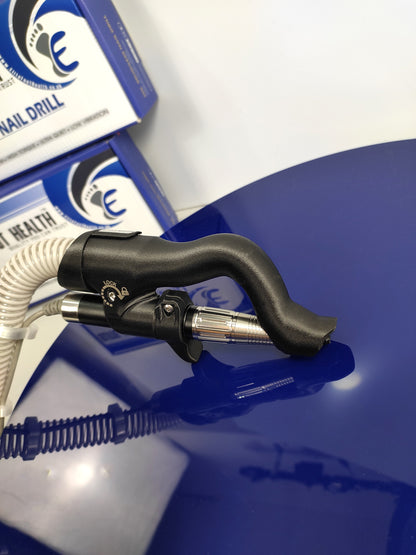

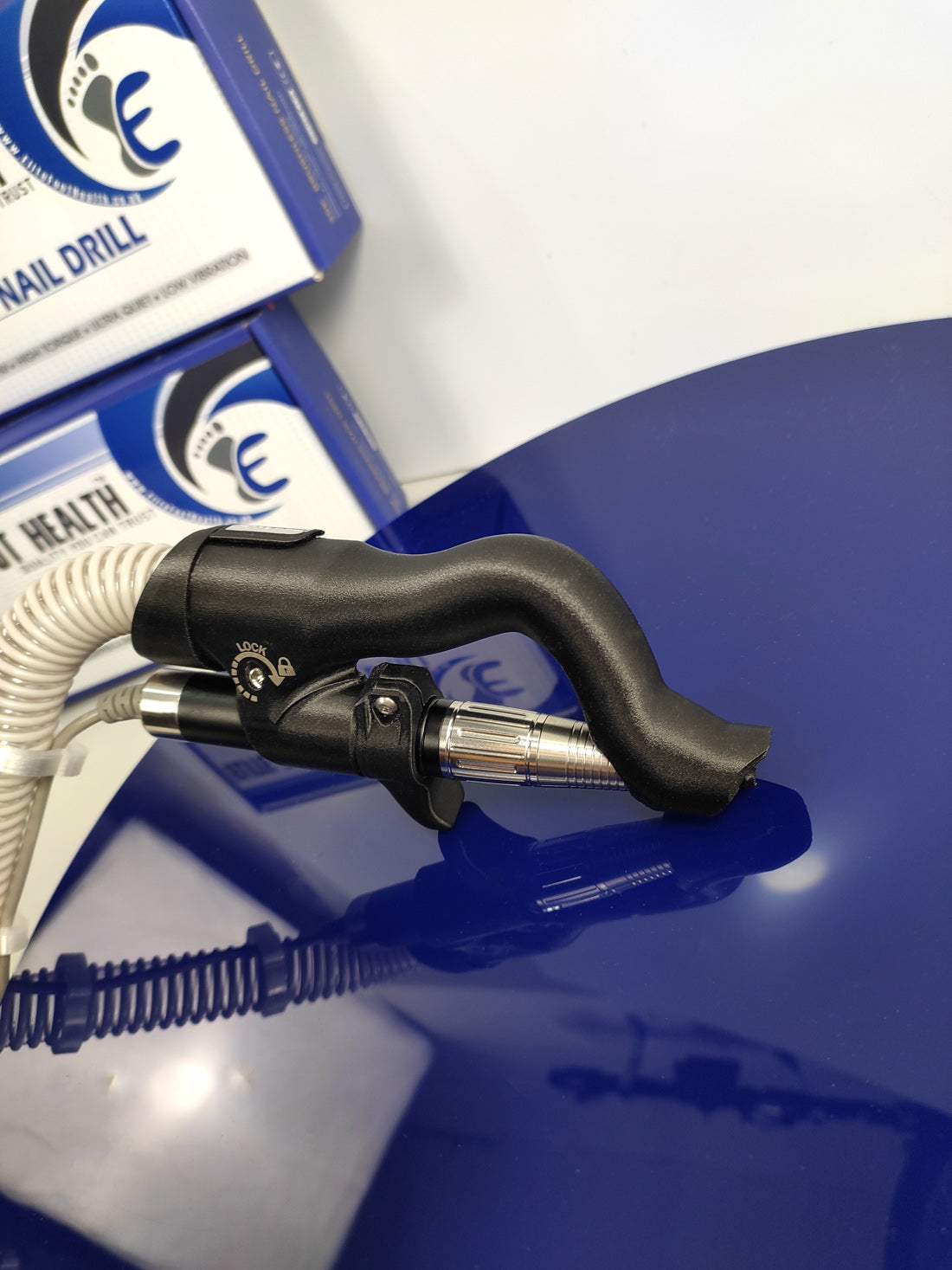

- What is the weight of the hand piece? The ultra flex pipe, suction adapter and drill weigh only 400g! That's roughly the weight of a banana or a hamster: so, super light. Remember: we’ve weighed the pipe, adaptor and the drill end, so in reality it’ll be much less.

- Is the hand piece comfortable to hold? Absolutely! The hand piece has been meticulously designed with your comfort in mind. Here’s 3 key reasons why you’ll love it:
1. It’s incredibly lightweight, allowing you to work for extended periods without strain.
2. The extraction hose is remarkably flexible, ensuring smooth movement as you work. Say goodbye to frustrating snags.
3. It’s extremely ergonomic, we’ve prioritised a user-friendly grip, even the extraction hose end itself has been designed so the drill can fit up close to the patient comfortably and without strain on the practitioner. It’s very easy to use and can be adjusted using our ergonomic hand palm grip so it is custom to how you like it.
